Transform Your Warehouse with Intelligent Automation

Automated Guided Vehicles (AGV)

Unlock the power of Automated Guided Vehicles to streamline material handling, boost productivity, and reduce operational costs

Automated Guided Vehicles Driving Efficiency and Safety in Warehousing

Automated Guided Vehicles (AGVs) are transforming warehouse robotics by enabling precise, autonomous transport of loads without human intervention. Equipped with advanced sensors and real-time navigation, AGVs optimize routes, avoid obstacles, and adapt to dynamic environments to improve operational efficiency. Implementing AGVs reduces labour-intensive tasks and enhances safety by minimizing human error-related accidents. These intelligent systems help businesses streamline workflows, cut costs, and maintain a competitive advantage in fast-paced markets.

AUTOMATED GUIDED VEHICLES (AGV)

FAQs About Automated Guided Vehicles

Automated Guided Vehicles (AGVs) operate autonomously without human drivers, unlike traditional forklifts and manual material handling. They follow predefined routes using technologies like magnetic tape, laser guidance, or sensors, which ensures consistent accuracy, efficiency, and reduced risk of human error in warehouse and industrial environments.

Automation Vector

Any Questions?

How Automated Guided Vehicles (AGVs) Operate and the Software That Powers Them

Automated Guided Vehicles (AGVs) operate using a combination of advanced hardware and software technologies that enable autonomous navigation, task execution, and safe interaction within industrial environments.

Navigation Systems: AGVs rely on laser guidance, magnetic tape, or vision-based navigation to follow routes or adapt in real time. These systems help the vehicles move accurately and avoid obstacles.

Sensors and Perception: AGVs are equipped with LiDAR, cameras, and ultrasonic sensors to continuously scan their environment. This allows for real-time obstacle detection, traffic monitoring, and safe movement within facilities.

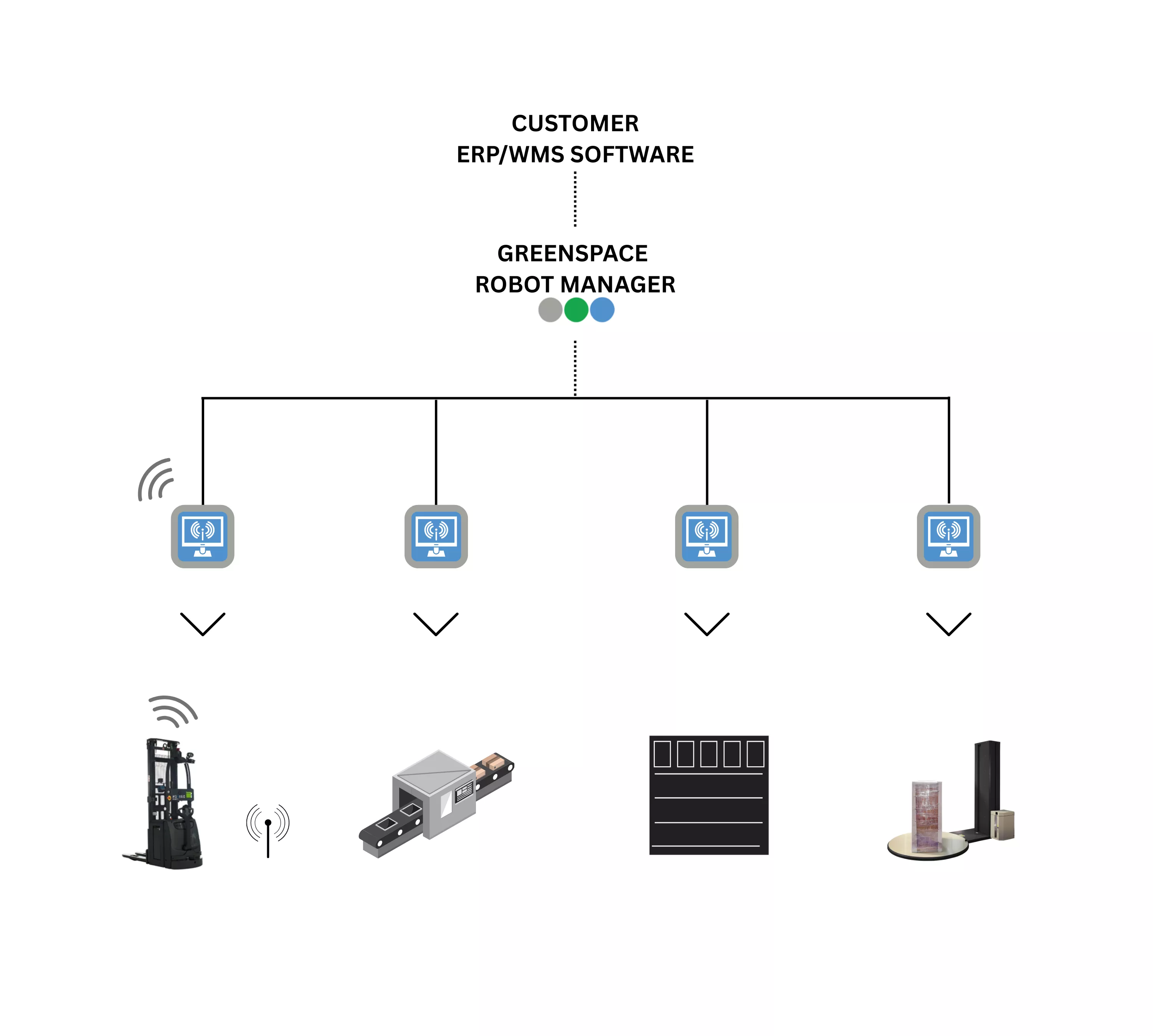

Central Control System: A central software platform coordinates AGV operations—assigning routes, managing traffic, and enabling collaboration between multiple vehicles to ensure smooth workflows.

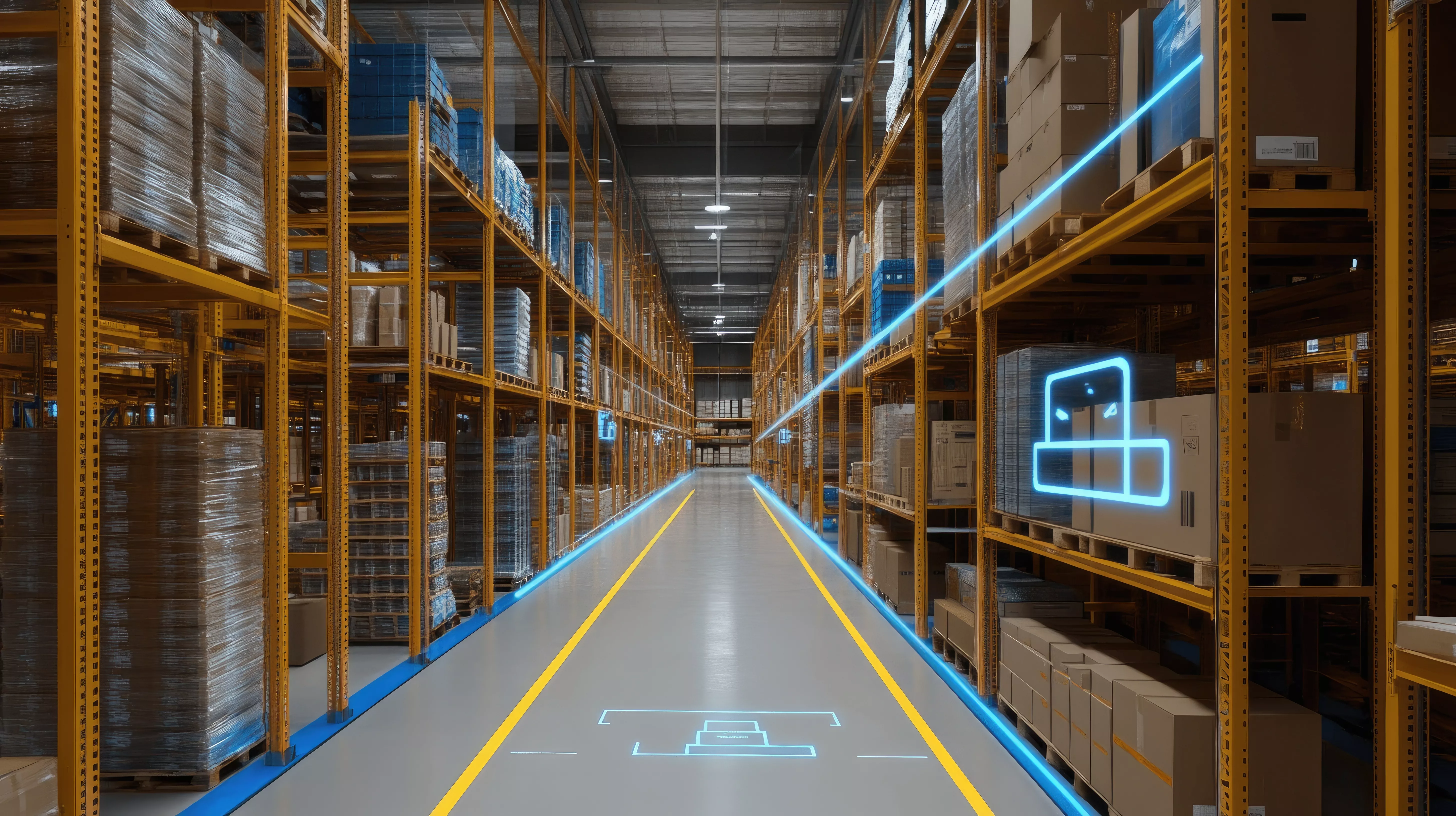

AGV Operating in Warehouse
AGV Operating in Warehouse

Software Behind AGV Intelligence

The core intelligence of AGVs is powered by several key software modules:

Route Planning and Optimization: Algorithms calculate the most efficient paths, reducing travel time and improving throughput.

Task Scheduling: Tasks are assigned based on AGV availability, priority, and location, maximizing productivity and minimizing delays.

Integration with WMS: AGVs connect with Warehouse Management Systems (WMS) to exchange real-time data, allowing for accurate inventory tracking and coordinated task execution.

Types of AGVs

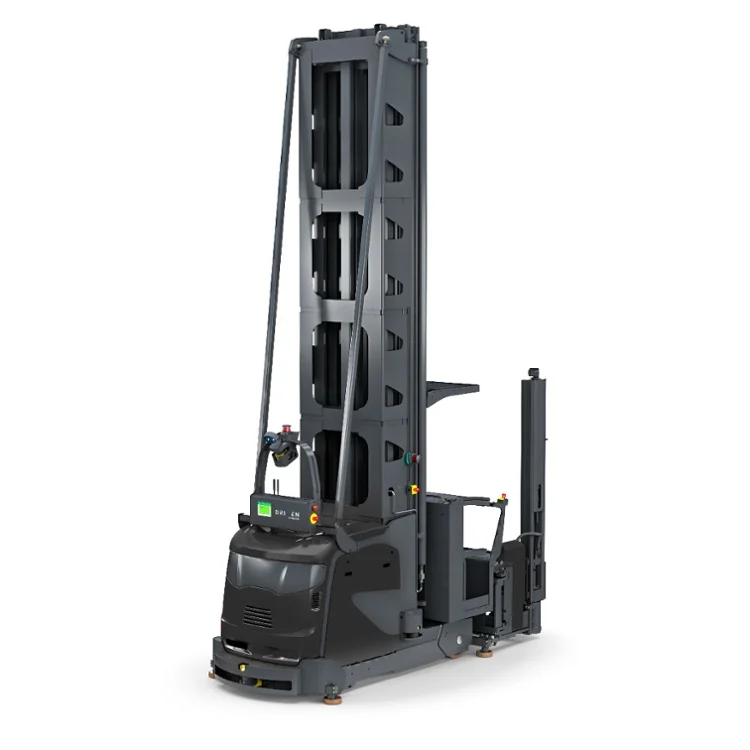

The robotic VNA is built on an industrialized conventional VNA truck and can operate in aisles as narrow as 1.8m. It may be adjusted to your specifications and provides lifts up to a world record 17m high. This robotic truck has unique 3D pallet identification and a 360° Smart Safety System, making it one of the safest trucks on the market.

Main Features

Robot Specifications

Energy & Options
  • Load Capacity: 1500 kg
  • Aisle Width:From 1800 mm
  • Travel Speed: 2.2 m/s forward, 2.2 m/s backward
  • Lateral Lift Height:Up to 17000 mm (reduced capacity 600 kgs at max height)
  • Length:2856 mm
  • Width:1560 mm
  • Height:2346 mm (without mast)
  • Weight: Depends upon configuration
  • Load Identification: 1D or 2D barcode reader
  • Safety & Detection: All included
  • Energy: Lead Acid / Wireless / Busbar

Key Benefits of Automated Guided Vehicles

Enhanced Productivity

Enhanced Productivity

AGVs operate continuously around the clock, increasing throughput, reducing downtime, and maximizing operational efficiency

Precision and Consistency

Precision and Consistency

 AGVs deliver accurate, repeatable performance in material handling, minimizing human error and improving quality control.

Space Optimization

Space Optimization

AGVs navigate narrow paths with precision, reducing the need for wide aisles and enabling better use of warehouse floor space.

Safety Boost

Safety Boost

 Equipped with advanced sensors, AGVs detect obstacles and avoid collisions, ensuring safe operation in dynamic, high-traffic environments.

Labour Cost Reduction

Labour Cost Reduction

By automating repetitive transport tasks, AGVs reduce dependency on manual labour, helping lower operational costs and address labour shortages.
